ESPI Europe is a manufacturer and supplier of insulators
for electrostatic precipitators (ESP) and substations.
YOU WILL FIND THE RIGHT INSULATOR WITH US
Are you looking for a reliable and experienced partner for the supply of insulators for electrostatic precipitator (filter) or substation? With us you will find the right insulator for your project. Whether it is a support insulator, post insulator or a wall bushing, made of ceramic, epoxy resin or polymer, we will be happy to advise you.
You won’t be waiting weeks for a quote. Contact us and we will get back to you within 24 hours.
We’ll give your request for one insulator the same attention as if you were to buy a thousand of them. We know you don’t always need hundreds of insulators for your project, but maybe just four wall bushings. We’ll even quote you for a few pieces.
Electrostatic precipitators (ESP) insulators
ESP insulators
Support conical insulators, wall bushings, shaft insulators, internal insulators,...
ESP Power and control
T/R units, control cubicles, earthing switches, MCS controller, ...
ESP Accessories
Heating, sealing, discharge electrodes, collecting plates, hammers, ...
Substation insulators
Substation Post Insulators
Ceramic post insulators available for BIL 60 - 1675 kV.
Substation Insulators
Middle voltage
Indoor and outdoor post insulators, up to 60 kV
Wall Bushings Insulators
Middle voltage
Indoor and outdoor middle voltage wall bushings
Epoxy resin insulators, Transformer bushings and more
Epoxy resin insulators
Indoor and outdoor post insulators and wall bushing from epoxi resin
Transformer Bushings
Transformer bushings according to EN 50180, DIN 42531, DIN 42532, DIN 42533, DIN 42533,...
Rashig Rings
Raschig rings, saddles, HiFlow ceramic, plastic, metal rings,...
Post Insulators for Substation

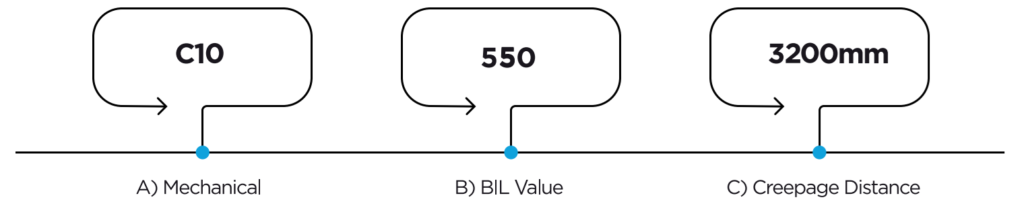

When someone refers to Porcelain Post Insulator C10-550 with creepage distance 3200 mm, what does it mean?

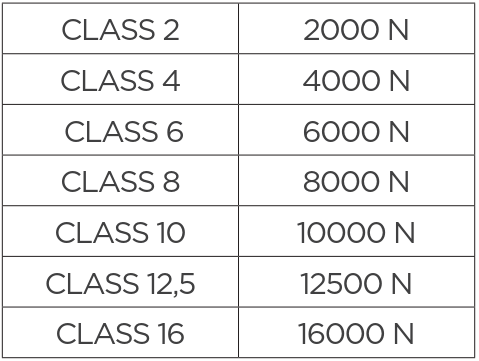

Mechanical strength
- According to IEC 60273, indoor and outdoor post insulators are classified according to the mechanical strength 2 – 16 kN

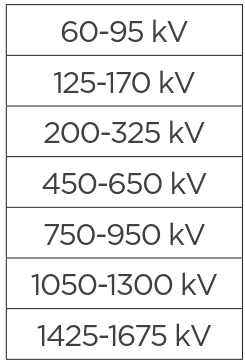

BIL
- Basic Insulation Level. Insulation requirements are available from 60kV to >1675 kV.
Creepage distance of insulator
- The creepage distances of the insulators comply with the standards IEC60273 and IEC60815. Insulators with creepage distance according to IEC60815 are designed for heavily polluted environment.
Contact us with your enquiry and we will respond within 24 hours.
What is an electrical insulator?
What is an electrical insulator?
An Electrical or high voltage insulator is a material that does not allow electricity to pass through it. Ceramic, plastic or glass insulators are mainly used to insulate a wire or rope that carries electrocity from other parts of the construction.
There are many types of insulators like: Electrical insulators, Ceramic insulators for electrostatic filters, insulators for electrostatic precipitators, ESP insulators, insulators and bushings for transformers, transformer bushings, EN50180, insulators for substation and overhead lines, support insulators, post insulators, wall bushings, porcelain insulators for high voltage, long rod insulators, wall bushings.
If you need to find your way around foreign language names, take a look at our multilingual insulator dictionary.
Ceramic, Glass or polymer?
Which material is the best for an electrical insulator? Enter your email and download our ebook.
Why insulators from ESPI Europe?
If you are looking for short delivery time, high quality and affordable price, we are the right partner for you.
We specialize in the development, manufacture and supply of ceramic insulators for electrostatic precipitators/filters and ceramic insulators for substations.
Our company headquoter is based in Prague, office in Louny in Czech Republic. We are well versed in insulators.
